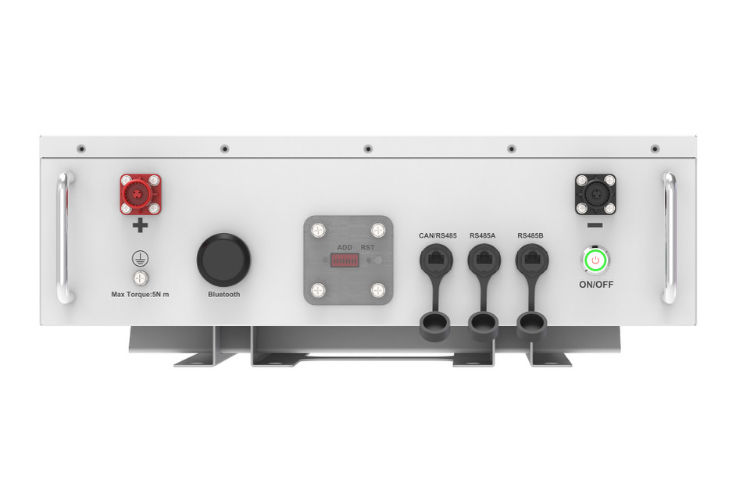

10kwh 48V 200AH UL1973 Power Storage Wall
LTN Power storage wall is a battery that stores energy, detects outages and automatically becomes your home's energy source when the grid goes down. Your system detects outages, powers your home and electric vehicle with backup energy and automatically recharges with sunlight to keep your appliances running for days. Pair with solar and recharge with sunlight to keep your appliances running for days. Power storage wall reduces your reliance on the grid by storing your solar energy for use when the sun isn't shining. Use Power storage wall alone or combine it with other LTN products to save money, reduce your carbon footprint and prepare your home for power outages.
For a complete quote including freight costs, please email sales@2xsolarpower.com or call 417-414-4417. Be sure to include your delivery location so we can provide the most accurate freight estimate.
Tech Specs
MODEL NO LTN051100A-B-GBP2
LTN051200A-B-GBP2 Battery Chemistry LiFePO4 Capacity (Ah)
100
200 Scalability Max.16pcs in parallel (81.92kWh) Max.16pcs in parallel (162kWh) Nominal Voltage (V)
51.2 Operating Voltage (V) 46-56 Energy (kWh)
5.12 10.24 Usable Energy (kWh)
4.61 9.22 Charge/Discharge Current (A)
Recommend
50 100 Max.
100 150 Peak(2mins,25℃)
120 200 Other Parameter Recommend Depth of Discharge 80% Dimension (W/H/D,mm) 480*615*160 550*720*200 Weight Approximate (kg)
62.50 102.50 Master LED Indicator 4 LED (SOC:25%~100%) 2 LED (working, alarming, protecting) IP Rating of Enclosur
IP20 Working Temperature Charge:0℃～55℃ Discharge:-20℃～55℃ Storage Temperature
0℃～35℃ Humidity 5%~95% Altitude ≤2000m Cycle Life (25±2℃,0.5C/0.5C,80%EOL) ≥6500 Installation Wallmounted Communication Port CAN2.0, RS485 Warranty Period 10 years Life Cycle Power During Warranty Period 22.42MWh@80% EOL 44.84MWh@80% EOL Certification UL1973, MSDS, UN38.3 UL1973, CE-EMC, MSDS, UN38.3 Request a Quote
For a complete quote including freight costs, please email sales@2xsolarpower.com or call 417-414-4417. Be sure to include your delivery location so we can provide the most accurate freight estimate.
